Clemco-Elite Standard Systems
1. Slotting - There are two slotting choices for brackets and hardware that have 1/2" slots that are  1" on center:  #5A is a thinner .080 slot plate and the #5 is a thicker .125 slot plate. The #10 is a heavy duty .125 plate with 1" slots that are 2" on center.
Ordering Clemco-Elite Uni-Standards

2. Flange - Walls with recessed standards are typically finished flush or have a slight reveal of the metal flange edge. Seven flange heights offer flexibility.

3. Lengths - Made to order any length up to 12' 0" at no extra charge. 6' through 10' lengths are common stock items that can typically ship within days.
AS SIMPLE AS 1, 2, 3 - SLOTTING, FLANGE, LENGTH

There are three uni-standard slotting choices and seven flange options:
F​LANGES
9/16"
11/16"
11/16"
3/4"
13/16"
15/16"
1"
1 1/16"

Part #
0916
1116
1116
1216
1316
1516
​1616
1716
Typical Wall Finish Result
Flush with 1/2" drywall
Slight reveal with 1/2" drywall
Flush with 5/8" drywall
Slight reveal with 5/8" drywall
Flush or reveal with 5/8", panel or MDF (custom)
Custom
Custom
Custom
Clemco-Elite Standard Systems ® 9131 BERMUDEZ ST, PICO RIVERA, CA 90660, 562-949-2535
#5A with .080 (thinner) slot plate (light/medium duty)
#5 with .125 (thicker) slot plate (medium/heavy duty)
#10 with .125 slot plate (heavy duty)

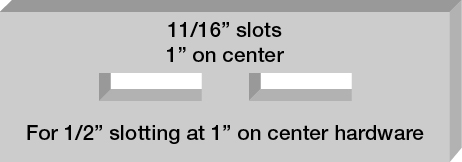

Both the #5A and #5 are:
  • 11/16" slots that are 1" on center
  • For 1/2" slotting at 1" on center hardware
The #10 is:
  • 1" slots that are 2" on center
  • For 1" slotting at 2" on center hardware
Examples of ordering recessed standards are:
  • 140 of #10-1216 Uni-Standard x 8' 0"
  • 125 of #5-1116 Uni-Standard x 7' 0"
  • 110 of #5A-0916 Uni-Standard x 6' 0"

The combinations of slotting/flange/length will be made to order as specified.

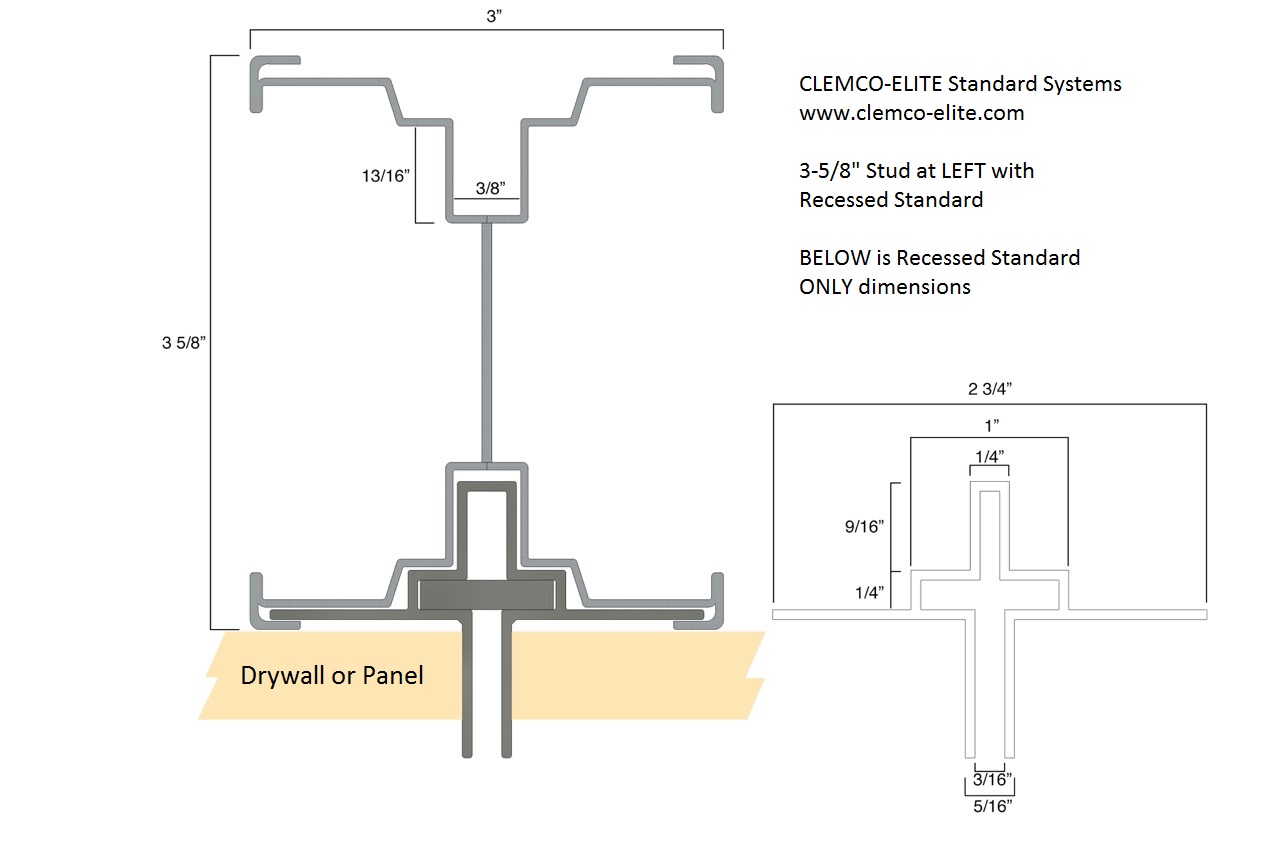

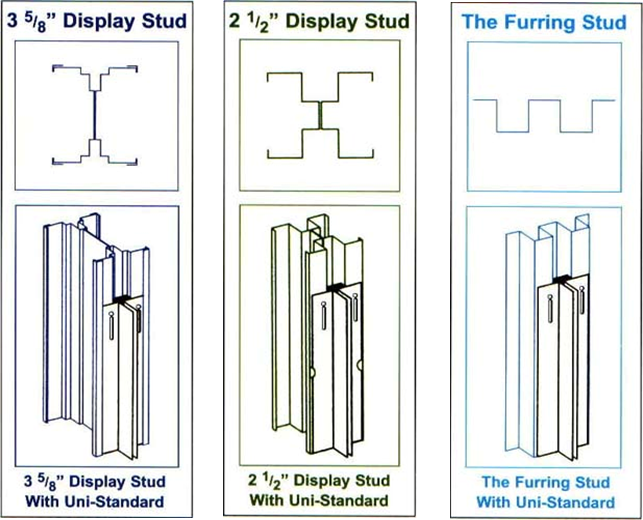

Ordering Clemco-Elite STUDS with CE Recessed Uni-Standards

Simply specify stud type and length, and your recessed standard.
Examples of typical stud-standard orders are:

140 of 3-5/8" Stud x 12' 0" w/#10-1216 Uni-Standard x 8' 0"
125 of 2-1/2" Stud x 10' 0" w/#5-1116 Uni-Standard x 7' 0"
110 of 3-5/8" Stud x 8' 0" w/#5A-0916 Uni-Standard x 6' 0"
